GLOTRENDS 300mm M.2 Key M to PCIe 4.0 X16 Riser Cable with SATA Power Cable, Not Support M.2 SATA Slot
Product details
| Management number | 239798497 | Release Date | 2026/07/14 | List Price | US$14.00 | Model Number | 239798497 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

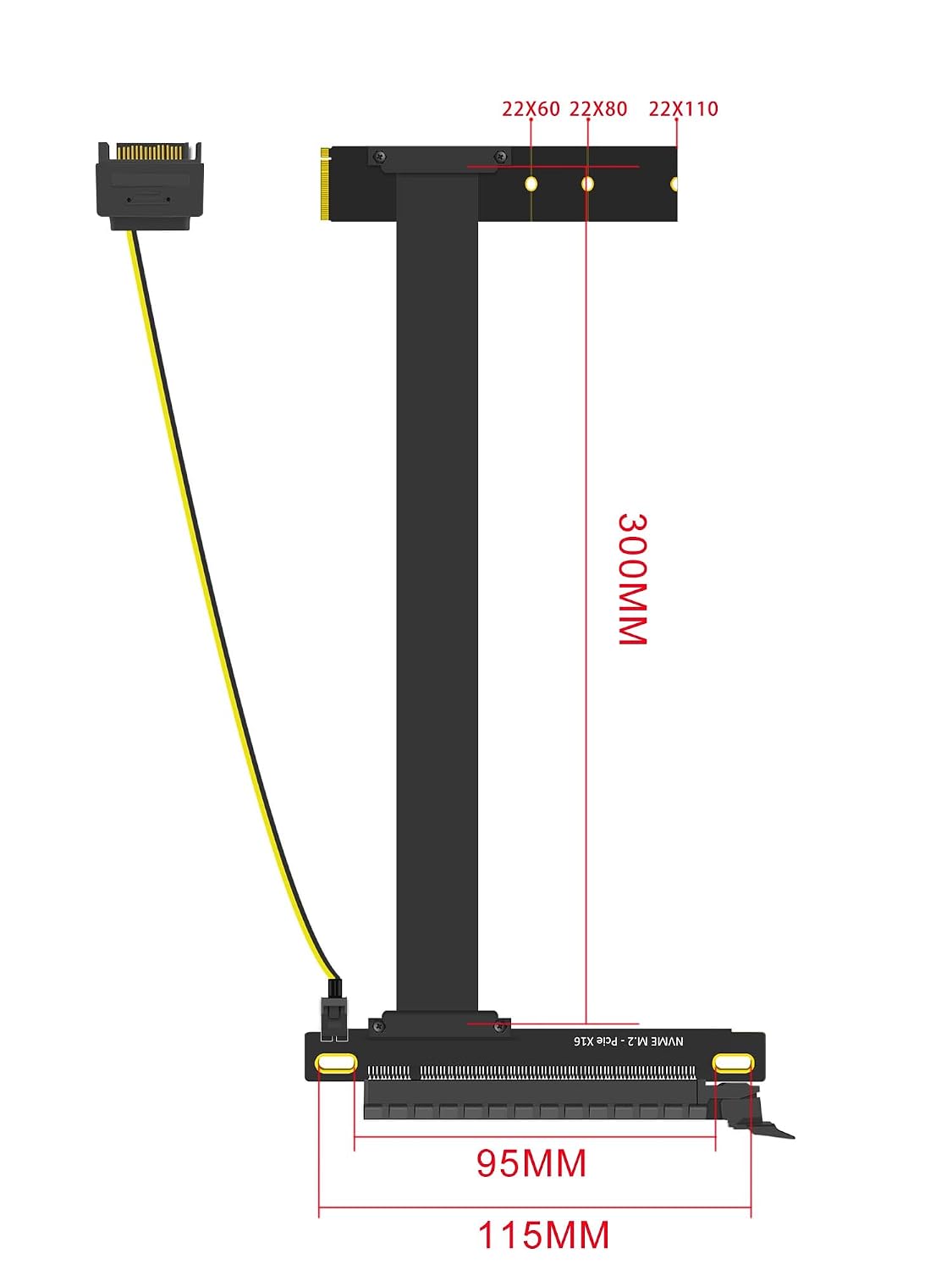

Slot Conversion and Extension：Converts the left-facing onboard M.2 M-Key slot to a 180-degree PCIe X16 slot, with a 300-mm extension.
- Slot Conversion and Extension：Converts the left-facing onboard M.2 M-Key slot to a 180-degree PCIe X16 slot, with a 300-mm extension. Only work with M.2 M-Key PCIE Slot, not support M.2 SATA Slot.
- Speed: Achieves a maximum PCIe 4.0 X4 speed (8GB/s). However, for this speed, the CPU, M.2 slot, and graphics card must all support PCIe 4.0. Note that Intel CPUs below the 11th generation do not support PCIe 4.0.
- Power Supply: Equipped with a 300mm long SATA power cable, supporting up to 75W/12V. Ensure your PC/Mini PC/Server has a 12V SATA power port.
- Compatibility: Compatible with all graphics cards and PCIe adapters. Due to the 75W power limit, high-power-consuming graphics cards require their own power supply interfaces.
- Troubleshooting: If your computer crashes or shows a blue screen after installation, re-insert the M.2 riser cable, check all device connections, and consider reinstalling the GPU driver.
| ASIN | B0D45QQ9JT |
|---|---|
| Model | M.2L-PCIE180-300MM |
| Wattage | 75 watts |
| Brand Name | GLOTRENDS |
| Cable Type | M.2 Key M to PCIe 4.0 X16 Riser Cable |
| Item Shape | Flat |
| Model Name | M.2-PCIE |
| Unit Count | 1.0 Count |
| Item Weight | 0.3 Pounds |
| Part Number | M.2-PCIE |
| Manufacturer | glotrends |
| Connector Type | M.2 Key M, Pcie X16 |
| Maximum Voltage | 12 Volts |
| Number of Items | 1 |
| Connector Gender | Male-to-Female |
| Compatible Devices | GPUs and PCIE Cards |
| Data Transfer Rate | 8 Gigabytes Per Second |
| Included Components | M.2 to PCIe 4.0 X16 Cable |
| Indoor Outdoor Usage | Indoor |
| Connectivity Technology | M.2 to PCIe 4.0 X16 |
| Recommended Uses For Product | GPUs and PCIE Cards |
| Other Special Features of the Product | Converts the left-facing onboard M.2 M-Key slot to a 180-degree PCIe X16 slot |
